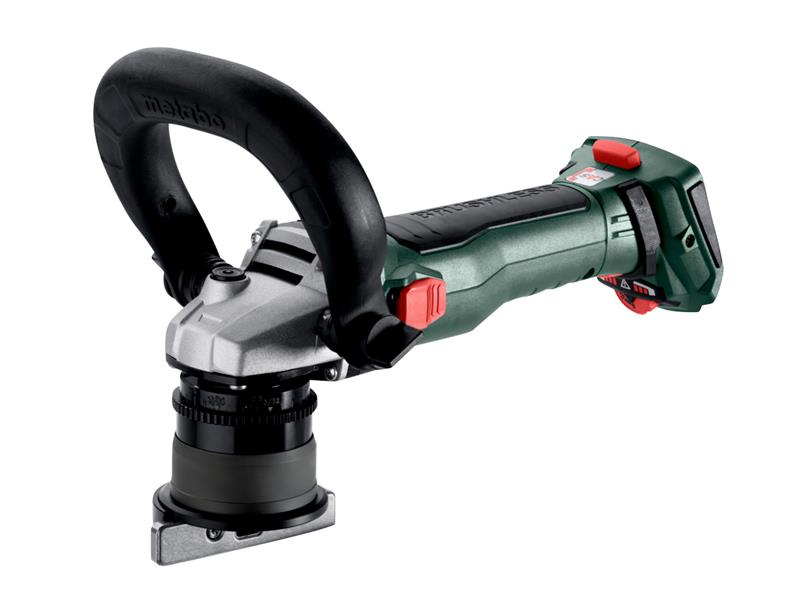

KFMVB 18 LTX BL 4 RF Bevelling Tool for Metal 18V Bare Unit

Metabo KFMVB 18 LTX BL 4 RF Bevelling Tool with a brushless motor for easy and quick preparation for subsequent coating. For creating 45° chamfers up to 4mm and radii of 2 and 3mm on interior and exterior edges, as well as for rounding off the edges of drill holes. There is also a thrust ring for efficient deburring of sheets 0.7mm and larger.

Its one-touch controller provides patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working. The variable speed setting thumbwheel allows you to work on materials requiring customised speeds, and at speeds which remain constant under load. A guide stop provides a uniform finish and high quality of the surface when processing straight sheets. The surfaces are free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion.

For added safety there is a fast brake, electronic overload protection, soft start and restart protection. The battery pack can be rotated in 90°steps for best ergonomics in any working position.

Bare Unit, No Battery or Charger supplied.

Works with all CAS (Cordless Alliance System) batteries: Metabo, Mafell, Rothenberger, Collomix, Eibenstock, Eisenblätter, Haaga, Starmix, Steinel, Rokamat, Birchmeier, Edding, Fischer, Prebena, Cembre, Pressfit, Jost, Trumpf, Gespia, Montipower, Scangrip, Baier and ITH.

Supplied with: 2 x Carbide Indexable Inserts 45° Chamfer, 2 x Carbide Indexable Inserts Radius R2, 2 x Carbide Indexable Inserts Radius R3, 1 x Thrust Ring, 1 x Guide Stop, 1 x Screwdriver for Torx Screws 15, 1 x Bow-type Handle, 1 x Dust Protection Filter and 1 x metaBOX 215.

Specifications:

No Load Speed: 4,000-8,600/min.
Type of Edges: Chamfer and Radius
Max. Chamfer Width: @45° 6mm
Max. Chamfer Height: @45° 4mm
Possible Radii: R2 / R3
Grading of Cutting Depth Setting: 0.1mm
Curves: Smallest Internal Ø 13mm
Weight: 2.3kg without battery pack
