C152 x 1/4 TCT Bearing Guided Biscuit Jointer 4.0 x 37.2mm

Shank = 1/4in

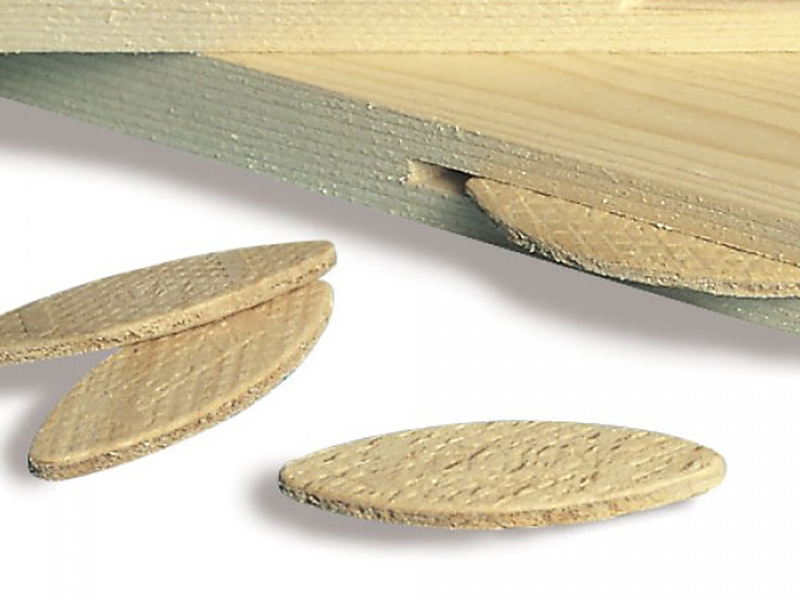

This TCT two wing slotting cutter is ideal for biscuit jointing sizes

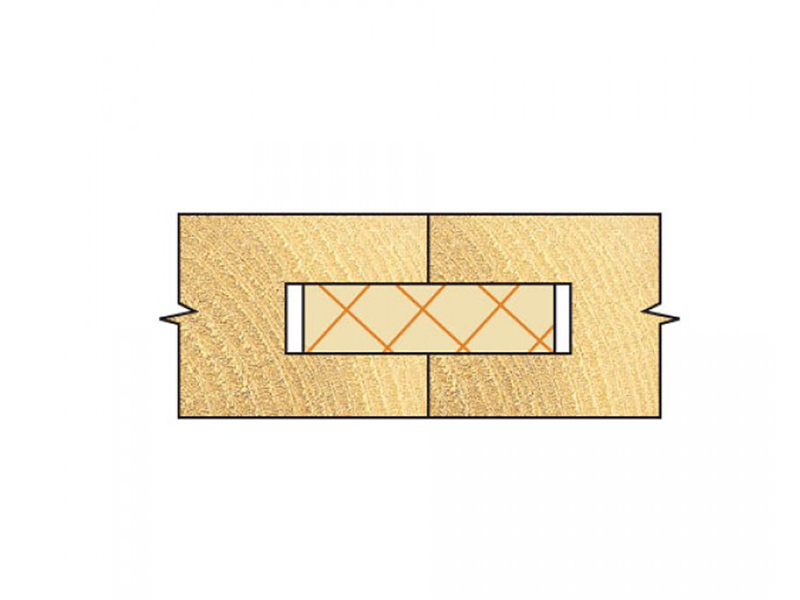

The set is supplied with 3 ball bearing guides to suit the three sizes of biscuits available. A slighlty longer cut than the length of the biscuit is required for ease of alignment during assembly

Supplied with instructions.

No. 0 - 45 mm x 15 mm x 4 mm
Suitable for 8-12 mm boards
Use bearing B19A 9.05 mm depth

No. 10 - 53 mm x 19 mm x 4 mm
Suitable for 13-18 mm boards
Use bearing B16A 10.6 mm depth

No. 20 - 58 mm x 23 mm x 4 mm
Suitable for 19 mm + board
Use bearing B127A

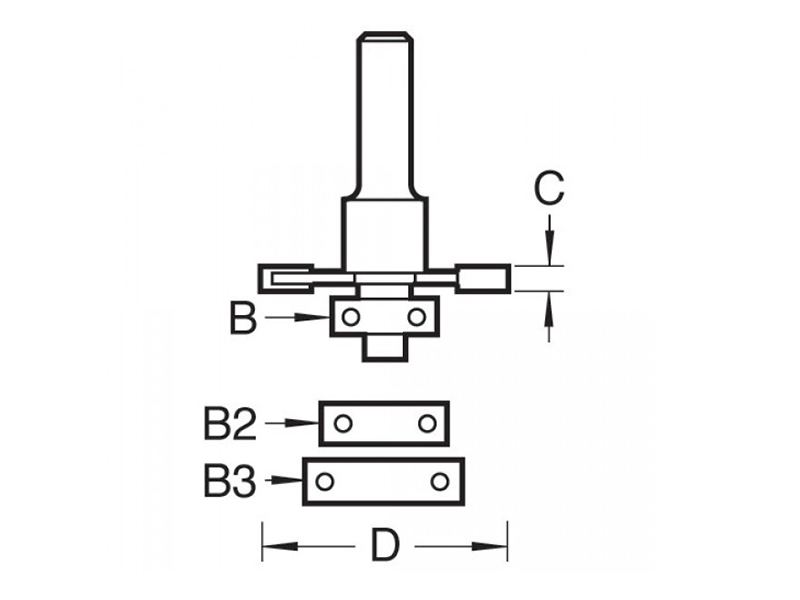

D1 37.2 mm
Cut length 4 mm
B 12.7 mm
B2 16.0 mm
B3 19.0 mm
